1.Stable performance with Advanced PLC
1.Stable performance with Advanced PLC
2.Conveying performs automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and
the length of the reflecting board in the preheating area,and eternal temperature in the preheater with an automatic thermostatic apparatus.
5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck
6.Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.
7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.
11.Low rejection rete: less than 0.2 percent.

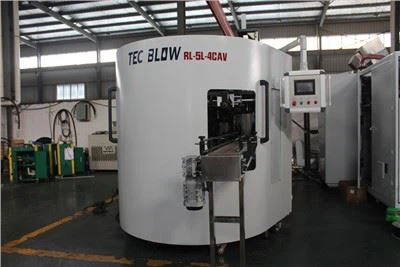

Modelka | Jednotka | TEC BLOWII 5L-4CAV | |
| Upínací systém | （Number of cavity） | dutiny | 4 |
（mold stroke） | mm | 0-200 | |
（stretch stroke） | mm | 360 | |
(Spodní tah) | mm | 50 | |
(Rozteč dutin) | mm | 203.2 | |
(rozteč topení) | mm | 76.2 | |
(číslo držitele) | PCS | 96 | |
| Kontejner | (Max. objem nádoby) | ltr | 5.0 |
(max. průměr krku) | mm | 48 | |
(Max. předběžná výška) | mm | 160 | |
(Max. průměr nádoby) | mm | 180 | |
(Max. výška nádoby) | mm | 360 | |
(teoretický výstup) | B.P.H | 3500-4000 | |
| Elektrický systém | (ohřev trouby) | JEDNOTKY | 6 |
(boxchannel) | Podlaha | 12 | |
(počet lampy) | ks | 96 | |
(topný výkon) | KW | 86 | |
PRŮMĚRNÝ VÝKON | KW | 56 | |
(instalovaný výkon) | KW | 92 | |
(Napětí) | Napětí | 220V/380V/50/60Hz/3 fáze | |
| Vzduchový systém |
（operating pressure） | kg/cm2 | 7 |
（blowing pressure） | mpa | 3.0-3.8 | |
（high pressure air consuming） | M3/min | 12 | |
| Chladicí systém | (teplota) | stupeň | 10-15 |
(tlak) | Mpa | 0.4 | |
(průtok) | L/min | 100 | |
(topný výkon) | HP | 10 | |
| Machine | (LWH) (rozměr stroje) | M | 1.03.52.5（Heating） |
| 2.52.02.5（Host） | |||
(váha stroje) | KG | 8000 | |
